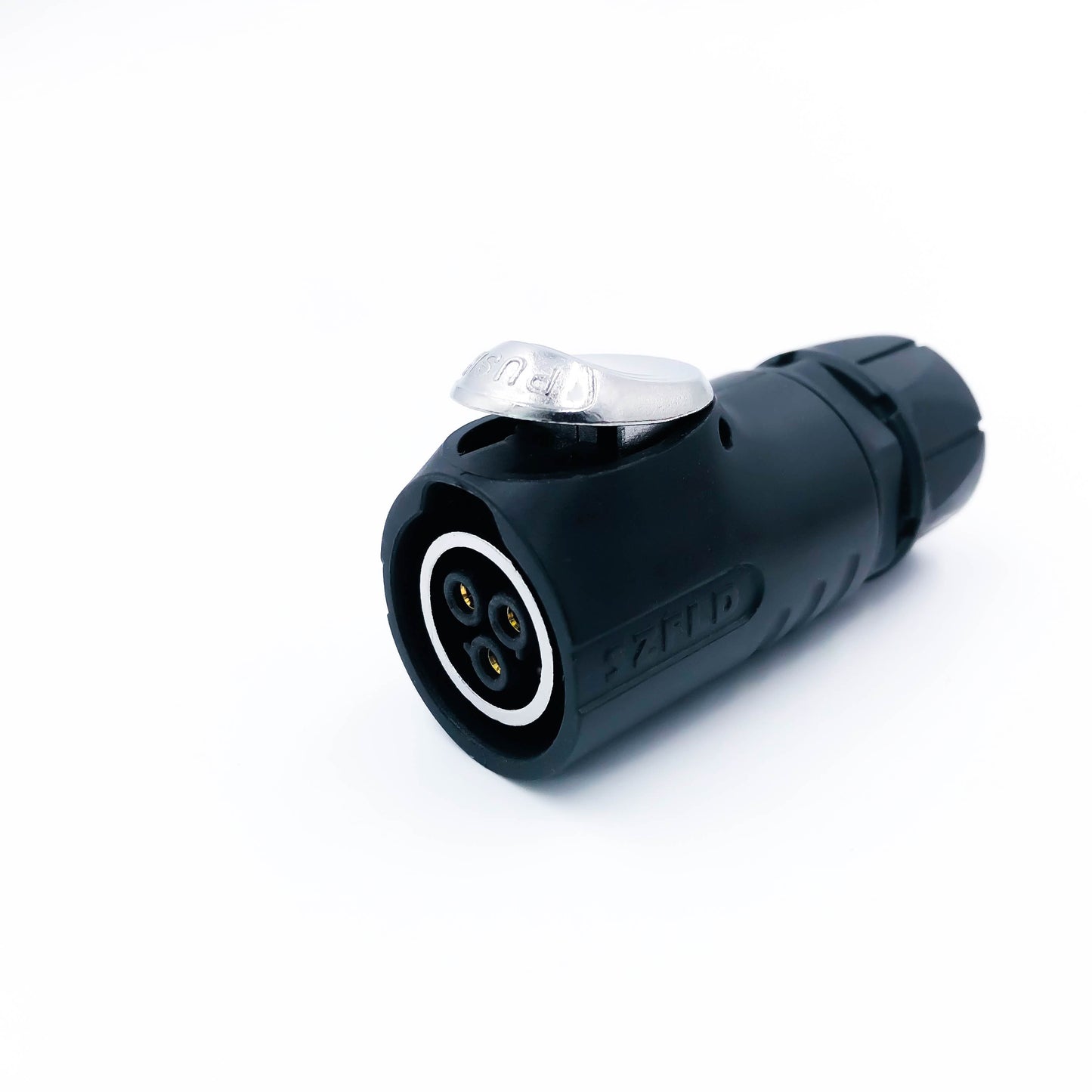

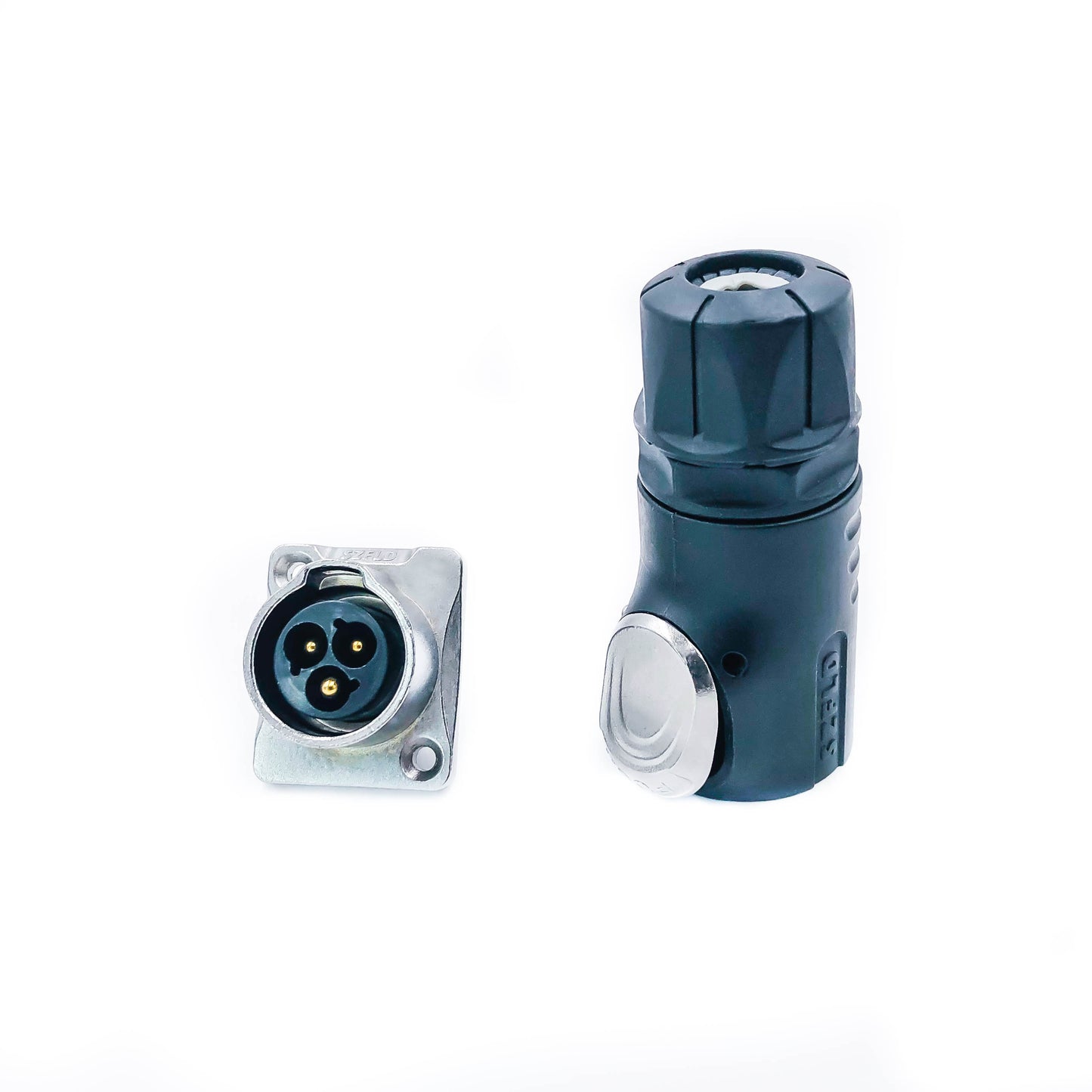

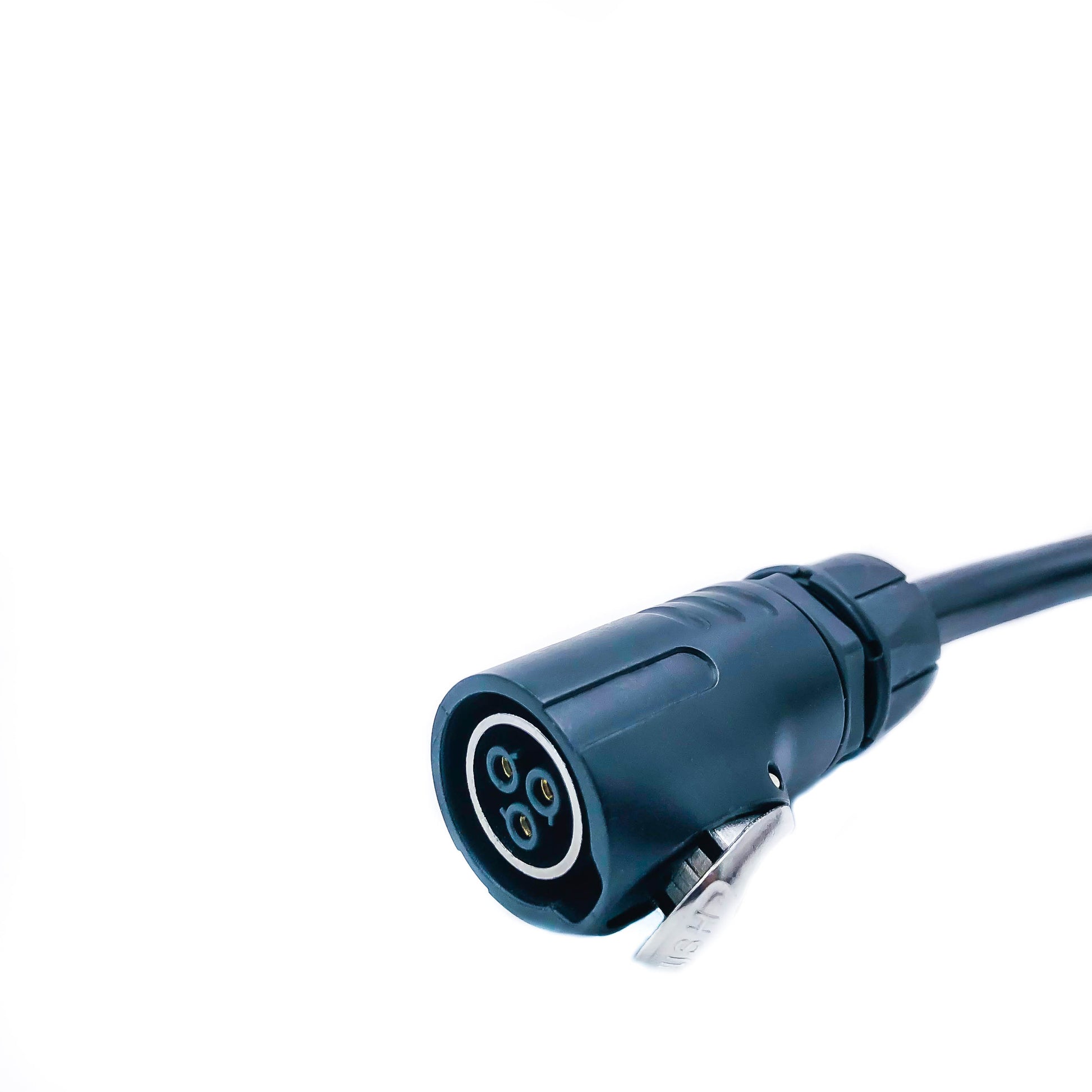

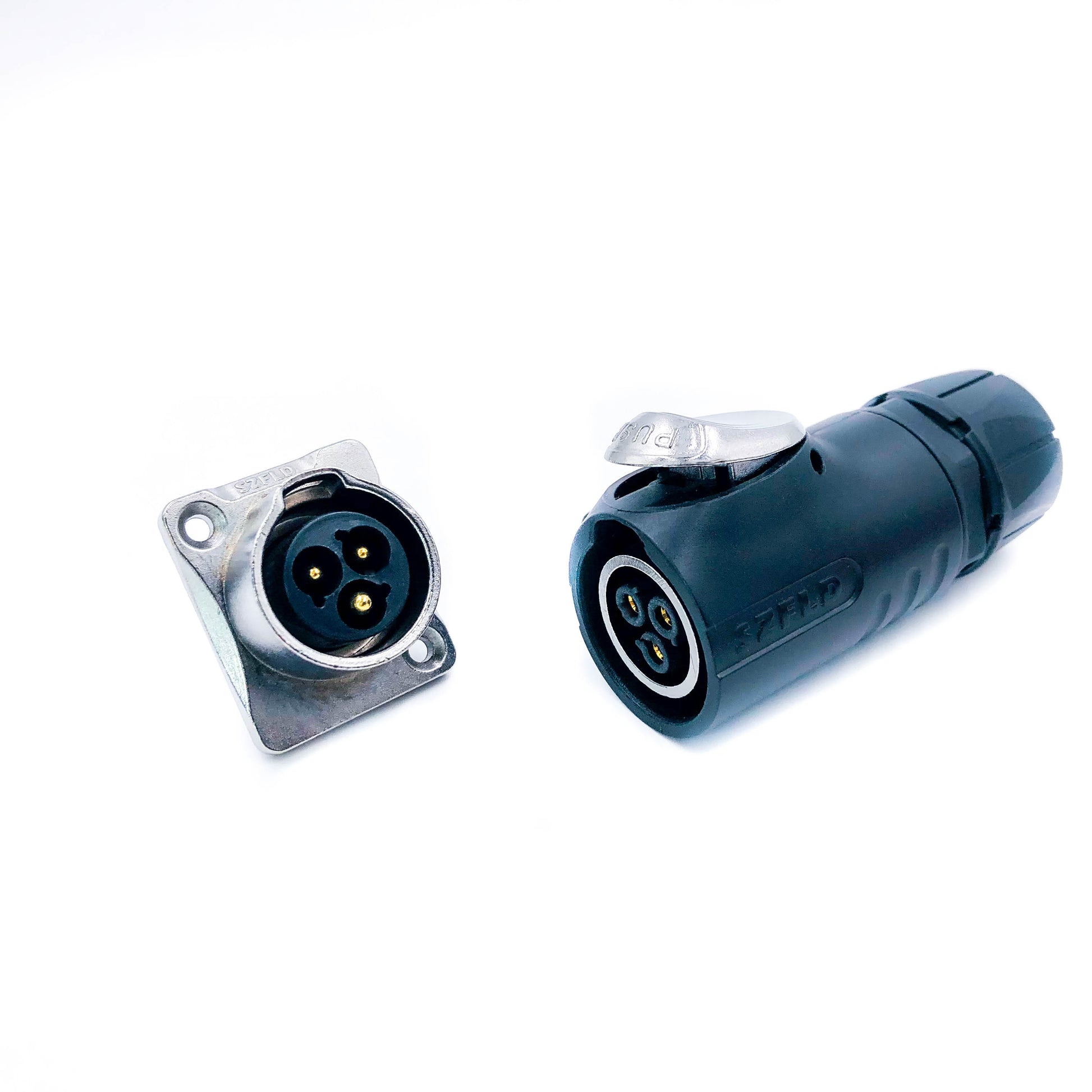

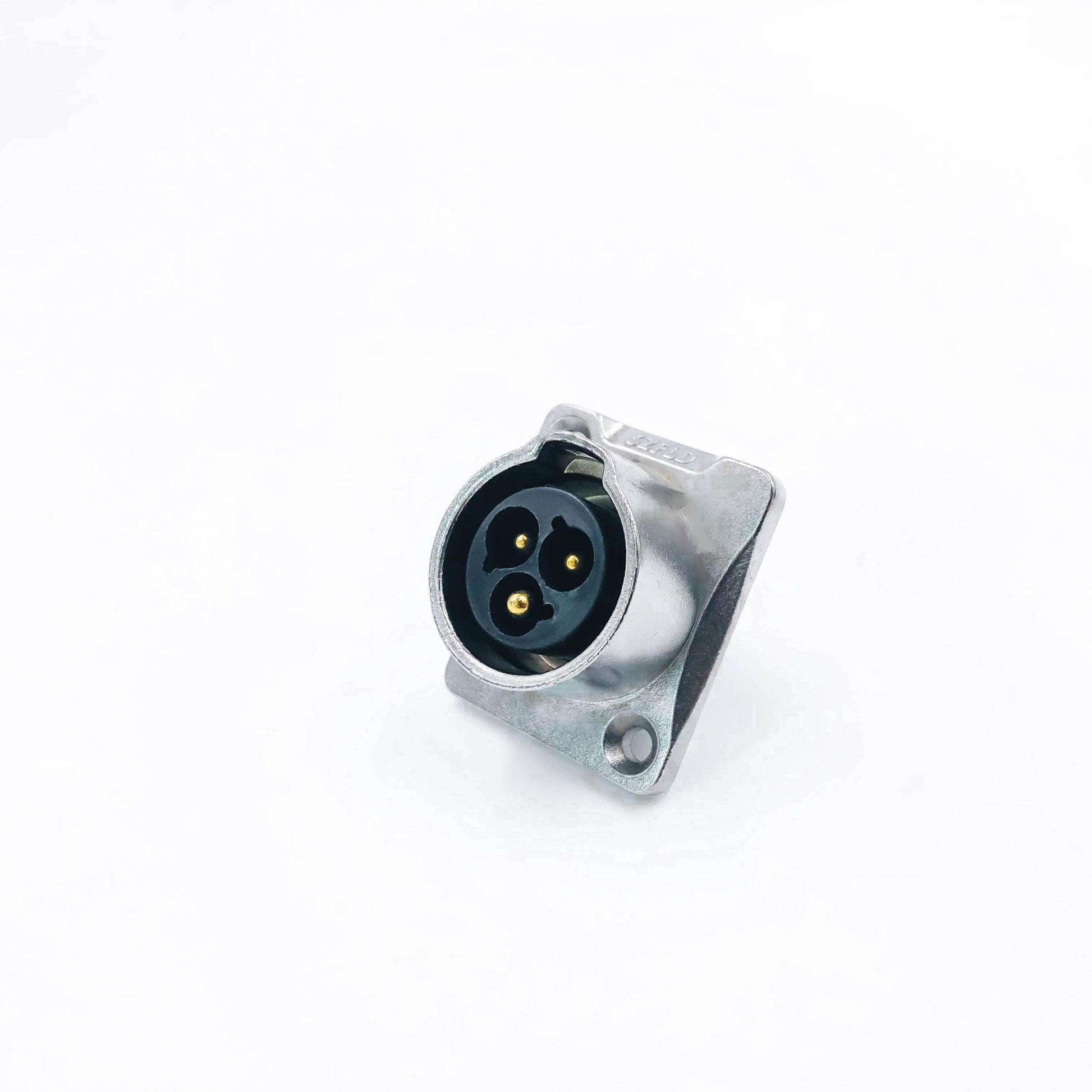

3 Pin Power Connector 20A Electrical Plug

Specification Parameter

Link Mode:PUSH LOCK
Rated Current:20A
Protection Level:    IP65
Rated Voltage:250V
Wire Specifications:1.5mm²~2.5mm²
Voltage Resistance:2500V/per minute
Insulation Resistance:>1000MΩ　　　　　　　　　　
Plugging Time:≥500
Working Temperature:-20℃~80℃
Flame Retardant level:94-V0

Features and Performance

Waterproof grade IP65.
Has a tight die-cast housing.
Quick plug, convenient and quick.
Zinc alloy seat and internal parts have perfect electromagnetic and radio frequency interference protection.
Unique docking design, stable extension of unlimited cable length.
Suitable for 20A electrical power cable, with 3/2.5mm^2 or 3/12AWG
Competible with FL-02-012 for LED screen video wall cabinets
Robust Construction For Long Life.

Material

Shell insulation: high performance engineering plastics
Metal shell part: Zinc alloy sandblasted hard chrome
Conductive terminal: Beryllium copper gold plated 2U"
Hardware sheet: SUS 304

Application:

Professional audio LED screen and stage lighting, communications, automation, new energy applications.

Our Service

Free sample available.
One station solution service of LED stage.
Our company will strictly produce as specificatios and deliver the products within the time as required by the contract.
FCONNR(SZFLD) will provide connector cable technological maintenance and guarantee within one year if any quality problem happens to our product.
We will provide product professional product for stage light audio&video choice suggestions and installation methods.

Packaging & Shipping

Lead Time: 3-5 working days after received payment
Shipment: by express, by air, by sea
Payment term:100% T/T in advance
Payment method: T/T, Western Union, Paypal

Why choose FCONNR(SZLFD)?

Our product have passed UL,CCC,CE VDE and ROHS certification. Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
